Mettler-Toledo Hi-Speed, Inc: Accurate & Dependable Checkweighing/ Beltweigh/CM

Features & Benefits Hi-Speed Checkweigher's Cornerstone Series, Model Beltweigh/CM is a high-performance checkweigher that has multi-scale capability and can monitor from one to six production lines concurrently.

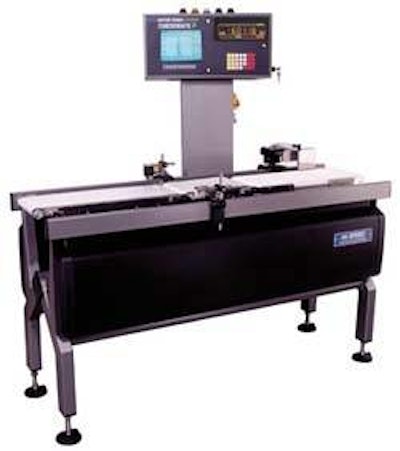

Pw 9875 Sub Mettler 4

This content was written and submitted by the supplier. It has only been modified to comply with this publication’s space and style.

It is designed to provide maximum accuracy, functionality, and dependability, even in the most challenging packaging applications.

The Beltweigh/CM achieves superior weighing accuracy by using high-performance servo motors that minimize vibration. Also, DSP, Hi-Speed's patented advanced noise-filtering system, is utilized to further enhance weighing accuracies, especially in high-throughput applications.

The operator interface consists of a membrane keypad and LCD screen, which can display statistical data of up-to-the-minute production information for 100% control of your packaging line. It can provide single-head or multi-head feedback for the monitoring of up to 72 filler

heads using Hi-Speed Checkweigher's Advanced Control technology.

Password protected programming is offered for up to 100 products. Programmed speeds are stored with individual product setups for fast and easy product changeover. The operator interface also features a dedicated weight display and separate graphic screen for SPC statistics and control charts. The Beltweigh/CM allows for both PLC and PC connectivity.

The Beltweigh/CM's solid, heavy-duty construction provides a rugged, stable foundation for precise, consistent checkweighing and is well suited for operation 24 hours a day, 7 days a week. It performs extensive

self-diagnostic checks to help ensure maximum uptime.

Hi-Speed Cornerstone checkweighers are backed by the most comprehensive warranty in the industry.

Model CM100 CM200 CM300 CM400

Accuracy 150 mg 200 mg 500 mg 800 mg

Rate ppm 500 ppm 300 ppm 160 ppm 140 ppm

Speed fpm 350 fpm 350 fpm 300 fpm 300 fpm

Maximum Package Length 100 mm 250 mm 450 mm 550 mm

Maximum Package Width 100 mm 200 mm 300 mm 400 mm

Maximum Package Weight 1000 g 3000 g 7 kg 7 kg

Infeed Conveyor (A) 250 mm 300 mm 500 mm 600 mm

Weight Conveyor (B) 150 mm 300 mm 500 mm 600 mm

Discharge Conveyor (C) 400 mm 400 mm 800 mm 1000 mm

stretch stretch stretch Intralox

Total Length 910 mm 1110 mm 2010 mm 2310 mm

Machine Width 513 mm 513 mm 613 mm 713 mm


Package Types: Cartons, bags, bars, pouches, bottles - Food, Pharmaceutical and Consumer products

Power: 110 V, or 220 V, single drop for control and machine

CheckMate2 Control: Pillar mounted, remote up to 2 meters

Display: LCD Screen and Tactile Interface to view histogram or average/range format

Motors: Servo motor with speed stored in product memory

Product Storage: Up to 100 product setups, complete with speed, timer settings

Statistics: Average, standard deviation, product counts, histograms, rolling average, zone counts and zone weights

Weight: Zones 3 (5 optional)

Languages: English

Security: Three levels of password protection,& Key Switch security

Standard Rejecter: Mechanical Push-Off

I/O: 24 VDC

Approvals: UL/CUL, ANSI B155.1-1994, EMI, RFI, ESD protected

Construction/ Sanitary Design: General Industry - Continuous weld, carbon steel construction with "Steel It" paint, 4X4 center spine, interchangeable belts, easy clean snap-out conveyors


Feedback to Filler: Individual or multi-head feedback for up to 72 heads

Serial Communications: RS232, 422 and Allen Bradley Remote I/O interface

Additional Rejecters: Air blast, sweep, plow

Reporting: Print reports

Floating Zone: For weight control of product with varying density

Construction: 300 series stainless steel construction, washdown NEMA 4X USDA

Meat and Poultry
