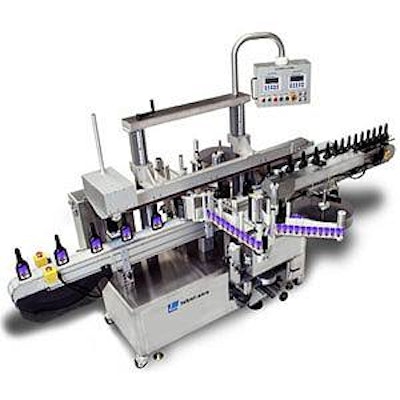

The rugged Inline 9000 is a structural steel cabinet based PLC-controlled labeling system designed for heavy duty front/back, side panel, or applications. Among its standard features are a swing arm control panel, a 12 foot (3깲 mm) delrin chain conveyor with extruded aluminum side plates, and a segmented top trap hold down to keep your products in place. Other standard features include Automatic Speed Following (ASF) for product surface profiling, a 1 HP motor for long-lasting durability, and dual applicator mounts with in/out traverse, up/down, with tilt adjustments for maximum versatility. Standard speeds up to 1귔 inches (3겔 cm) per minute and optional speeds up to 2ꯠ inches (5갰 cm) per minute with the optional Variable Frequency Drive (VFD) make the 9000 the ideal choice for demanding applications requiring speed and precision. The 9000's long list of options include a choice of Label-Aire New Generation applicators (wipe-on, air-blow, or tamp-blow), wrap b!
elt, single or dual feedscrews, stainless steel side plates, airfill capability, and powered or non-powered impressors.
The Inline Series 9000 is built to meticulous quality standards and designed to work in the most hostile environments.
Swing arm control panel with dual keypad/R3 digital displays allow you to easily control applicators for easy set-up and adjustments.
Label-Aire New Generation 3100 Series Primary Applicators offer precise and reliable labeling with easy set-up and change-overs and quicker line speeds. Select from our four advanced models: 3115 Wipe-On, 3125 Wipe-On, 3111 Air-Blow, or 3114 Tamp-Blow.
Automatic Speed Following (ASF) means labels are accurately applied even through extreme changes in product line speed.
Optional Single or Dual clutched feedscrews are cleverly engineered for quicker change-overs. "Soft start" capability is designed to maintain product surge.
Optional Variable Frequency Drive (VFD) allows speeds up to 2ꯠ inches (5갰 cm) per minute for more demanding applications.
Optional air-fill capability to label thin walled empty containers by adding rigidity.
Specs
Dimensions: Height: 79.8” (2 mm), Length: 144” (3깳 mm), Width: 75” (1꽩 mm)
Weight: Approx. 1800 lbs. (817 kg)
Standard Label Dimensions: * Max. Web Width: 7.13” (181 mm), Min. Web Width: .63” (16 mm), Min. Label Length: .5” (13 mm)
Label Packaging: * 12” (305 mm) O.D. rolls std. on 3” (76 mm) I.D. cores, Up to 16” (406 mm) or 20” (508 mm) roll with optional 16” (406 mm) non-powered rewind or 20” (508 mm) powered unwind
Label Placement Accuracy: Up to +/- 1/32" (0.8 mm)
Electrical: 120 Volts AC 60 Hz 20 Amps., 220 Volts AC 50 Hz optional (CE)
Air: Required with air-fill and hot stamp printer options
Options For System: 2 cfm at 60 psi to 90 psi required with imprinter and/or airfill options
* Model 3115 Wipe-On Specifications
