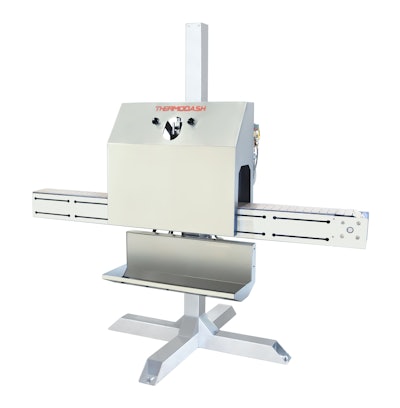

Thermodash is the first in a series of steam tunnels from Axon designed to conserve energy and water while enabling high-quality shrink sleeve labeling on lines running at up to 100 containers/min.
Thermodash can operate on as little as four kilowatts (kW) of electricity and three gallons of water per hour. The tunnel is sized for containers up to 4 in. (10.6 cm) wide and 10 in. (25.4 cm) tall. Customers can work with Axon on a custom model should their container size exceed these parameters.
Thermodash features stainless steel double wall construction for years of reliable and safe operation. A cantilevered cover provides for easy access to tunnel components. Thermodash is designed for quick changeover and is available in one and two zone configurations. A compact steam generating system rated at 15 PSI (1.05 kg/cm2) is integrated on the back of the unit.
