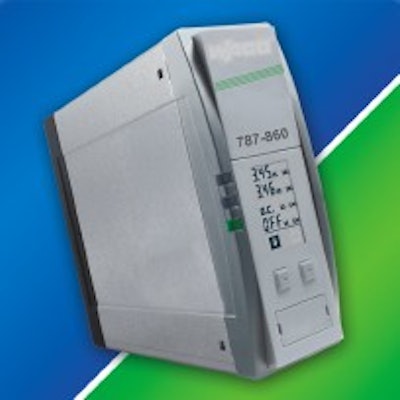

The DIN-rail mount 787-860, 787-861 and 787-862 circuit breakers each
separately protect up to four current paths (up to 10A at 24VDC max
each), while offering independent programming via free 759-860
Configuration software. In the event of a fault or short circuit, the
circuit breakers can shut down the tripped channel within 100ms. Rather
than halting the entire system, power is maintained to other loads,
preventing a system-wide shut down. Afterward, the tripped load may be
remotely reset via a control input. Through free 759-860 Visualization
software (and available RS-232 cable) or on-unit LCD, the 787 Series
Electronic Circuit Breakers provide independent channel monitoring of
voltage, current, fault diagnostics and energy consumption.
