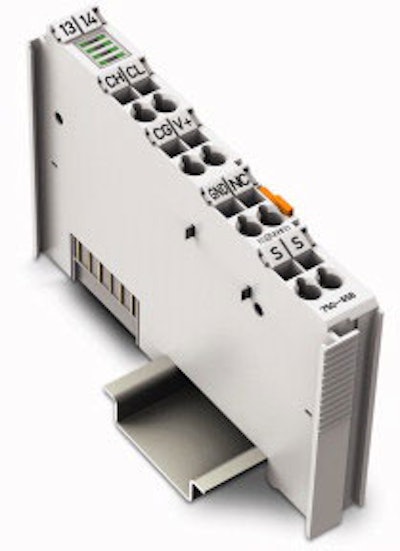

The CAN Gateway module can be used with 750 Series PLCs or couplers, providing a gateway between a CAN network and other fieldbuses, (e.g., Ethernet or Profibus) leveraging the flexibility of the fieldbus independent WAGO-I/O-SYSTEM.
Flexibility and freedom of choice at the automation level
The 750-658 supports CAN Layer 2, making it extremely flexible at the field level. The module can be integrated into a CANopen, SAE-J1939 or DeviceNet network by using CoDeSys function blocks.
The CAN I/O module offers users flexibility by providing the option for operation in one of three modes: sniffer mode, transparent mode or mapped mode.
• Sniffer mode: The module performs a detailed analysis of the unaffected CAN bus through passive “snooping”.
• Transparent mode: The 750-658 becomes an active CAN subscriber, with the ability to send and receive CAN telegrams.
• Mapped mode: The module is able to generate CAN telegrams directly from the process map, or to selectively copy process values from received telegrams into the input process map.
With GL marine and UL508 certifications, the 750-658 is ideal for an expansive number of possible applications, such as shipboard engine monitoring or connection to CANopen devices in a wind turbine.
