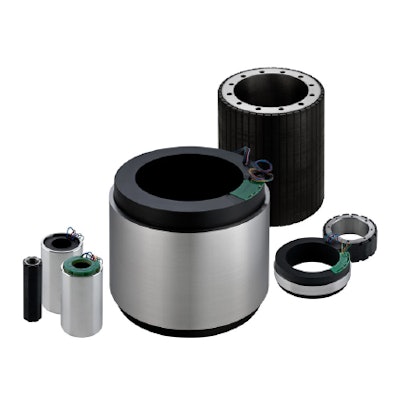

Available in 14 sizes for low or high voltage operation; come in
standard frame sizes ranging from 60mm to 825mm in diameter; and for
240 VAC or 480 VAC operation. Available with up to 3 or 4 stack
lengths. The motors feature fully encapsulated stator windings.
Internal windings are rated for continuous duty operation up to 155°C
(311°F). Rare-earth neodymium Iron Boron magnets provide high
continuous torque ranging. Maximum available speeds at rated power
from 105 up to 18,600 rpm.
