This content was written and submitted by the supplier. It has only been modified to comply with this publication’s space and style.
The extraordinary magnetic force of Eriez Palletizers/Depalletizers is supplied by Erium®-powered permanent magnets. Barring accidental damage to the head, there is always ample magnetic force for continuous can lifts.

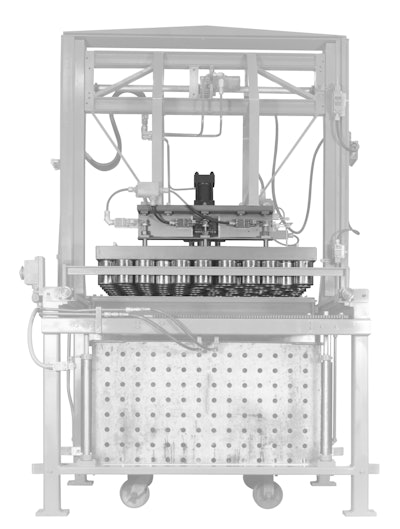

The Eriez unit consists of a magnetic head encased in stainless steel, a stripper assembly with stripper head and a stainless steel stripper pan and a six-inch inch (152 mm) bore diameter air cylinder with a stroke of 1-1/2 inch (38 mm) and oversized rod for use with 80 psi (5.6 kg/sq cm) minimum and 150 psi (10.5 kg/sq cm) maximum air pressure.
In operation, the assembly is lowered (or the cans raised) until the stripper pan comes in contact with the cans to be handled. The magnetic head is then lowered to the holding position. The entire assembly is lifted (or the can layer support lowered) and the Palletizer/Depalletizer holds the cans securely as they are carried to the desired area. Finally, the magnetic head is raised and the cans are released.
Eriez’ Palletizers/Depalletizers can be built in various sizes to fit practically any can stack configuration.
