Liquid filling machine for extra large tote containers

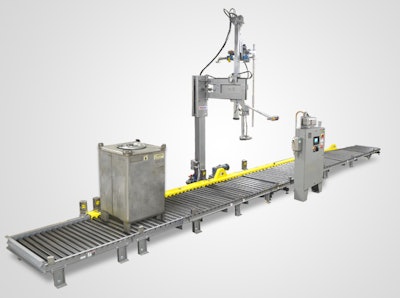

The Ideal-Pak PT-BF-XL can be configured with a heavy duty powered in-feed conveyor to move empty totes and drums onto a powered scale conveyor for filling. Once filled, the containers are transported to an exit conveyor for bung attachment, labeling and final packaging. The flexible Ideal-Pak Model PT-BF-XL tote filling machine can be configured to accept a variety of drums and super-size totes, including metal, all-plastic and HDPE containers, in addition to standard 55 gal. drums. The PT-BF-XL filling machine is well suited to a wide variety of industrial filling applications, including paint/coatings, lubricants and chemicals.
Features include:
- Semi-automatic electronic net weight filling with SPC for high accuracy and greater throughput.
- Top- or bottom-fill machine (for foamy products) operation.
- Lead screw-driven filling lance with pre-set height adjust (for various tote heights) via color touch screen control panel HMI.
- Recipe generation software to easily create, store and select product recipes for easy machine setup and fast product changeover.
- Wide choice of wetted parts supports a variety of filling applications.
- Multiple configurations of in-feed and out-feed conveyors.
- Class 1, Div. 1 explosion proof configurations available.
