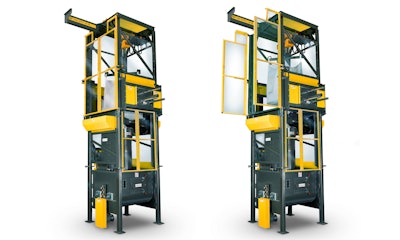

A 9.525mm polycarbonate encasement surrounds the bulk bag unloader to prevent migrant dusts that piggyback on the exterior of bulk bags from becoming airborne and entering the work zone during bag conditioning and bag collapse.
The combustible input material is introduced, dust-free, directly to an integrated surge hopper through the NBE E3 closed-cycle dust recovery system that secures and encloses the bag spout within a sealed containment cylinder. The surge hopper is constructed with explosion protection and control features, including an explosion venting system, calculated on a Kst value of 170 and Pmax of 9.5, to direct and release overpressure to prepared areas. The hopper construction includes reinforced walls and a reinforced cover, and is rated for 4.5 PSI internal pressure.
NBE’s integrated automation centralizes all drive controlling, material feed sensing, material routing, and control layer monitoring and reporting to a single, UL-listed HMI, designed and built by NBE. Rigorous NBE risk assessment procedures work to prevent hazards to those who operate and maintain the equipment, while identifying improvements in physical ergonomics and equipment access points. Application-appropriate codes, standards, and regulations help ensure system compliance at start-up.
