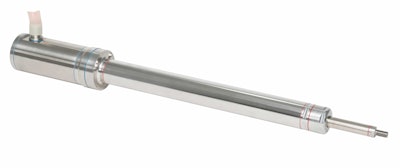

Series ECP Electric IP69K Cylinders are designed for food processing and packaging equipment utilized in high pressure/high temperature washdown and clean-in-place (CIP) environments. These performance electric cylinders are available in either ball screw or lead screw (polymer nut) versions, providing a wide range of high thrust or high speed capabilities. Two models feature a USDA certification.
The Series ECP offers Your Motor, Your Way*, a configurable online system that allows the user to easily power the unit with the motor and controls of their choice. Motors are mountable in an inline or foldback configuration with a broad offering of mounting accessories.
Three models are available in three sizes each:
Base Model
• Designed for applications in high pressure and high temperature washdown environments
• 300 grade stainless steel body and rod with aluminum head and motor mount
• Your Motor, Your Way
USDA Certified for Product Splash Zone (-Y8 Option)
• Designed for food processing industry splash zone and caustic washdown applications
•All external surfaces are 300 grade stainless steel
• USDA certified for splash zone environments in all orientations
• Limited Your Motor, Your Way with USDA certification*
USDA Certified for Product Contact Zone (-Y91 Option)
• Designed for food processing industry product contact zones requiring caustic washdown
• All external surfaces are 300 grade stainless steel
• USDA certified for product contact and over product
• Includes external rod wiper and sanitary tray for over product applications
• Limited Your Motor, Your Way with USDA certification*
* USDA Certification from PHD requires an -M Motor Code option with the -Y8 and -Y91 models.
