Transducers measure absolute or gauge pressure in gases, vapors, liquids and dust

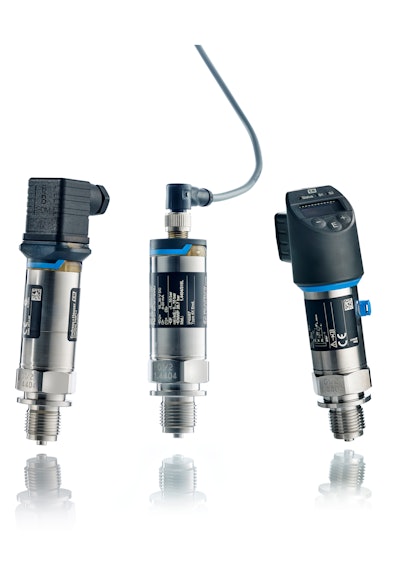

Available with threaded or welded hygienic process connections, Endress+Hauser Cerabar PMP11, 21 and 23 pressure transducers meet a variety of industry standards, including FDA, FM, IEC and Ex. They provide 4-20mA or 0 to 10VDC output signals. The PMP11 and PMP21 versions measure pressures from -15 to 6,000 psi at temperatures from -40°F to 212°F, with an accuracy of 0.5% and 0.3%, respectively. The PMP23 model measures pressures from -15 to 600 psi at temperatures from 14°F to 212°F, with an accuracy of 0.3%; it includes a 316L stainless steel IP69 housing and process isolating diaphragm, and can be used in CIP and SIP applications at temperatures up to 275°F.
