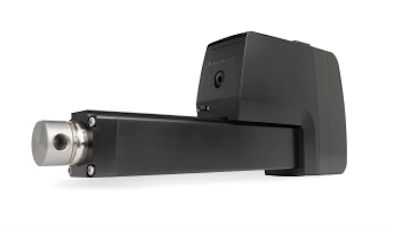

Electric Linear Actuator

Thomson Industries’ Electrak XD actuator is designed to handle loads up to 5000 lb, depending on configuration, for a combined power output of more than 450 W. It can also achieve operating speeds up to 3 in/sec and duty cycles up to 100%.

Vcs Pr Asset 3595925 172618 9d4a6b07 3cc0 4f67 A159 1b4fda10e720 0

Thomson’s Electrak XD linear actuator offers a high-power, zero-maintenance alternative that is simpler, cleaner and more controllable than hydraulic alternatives. In addition to the capabilities mentioned above, the new actuator features or has options for:

• Shock dampening to protect electromechanical components from impacts common on warehouse and factory floors as well as other mobile applications in which hydraulics are traditionally used.

• Manual brake release and override, which enable backdrive under load and can be valuable for machine maintenance or situations where emergency lowering is required or beneficial.

• Up to 1200 mm of stroke, which is 20% more than comparably priced hydraulic cylinder options.

• Regen capability, which reduces energy consumption in battery-powered, industrial applications by enabling motor torque to charge the battery. Regen also extends the time between charges, allowing more movements from a single charge.

• Brushless motor technology, which enables high duty cycle by virtually eliminating wear on motor components. Brushless technology also contributes to the Electrak XD’s high controllability.

Complementing these performance benefits is onboard intelligence that enables ease of use and programmability far greater than hydraulic systems can provide. The electronics also enable control and diagnostics through real-time position feedback, force feedback and control, and programmable end-of-stroke limits. Designers can implement applications over a CANopen® or SAE J1939 CAN bus network, which, among other things, simplifies synchronization of multiple actuators.

Electrak XD linear actuators are available immediately as a compact, fully integrated unit, including the motor, drive, IP-rated housing, control architecture, diagnostic features and more. The end result is a plug and play actuator that saves the designer money and time.
