Exciting Variety for PCB Design

This content was submitted directly to this website by the supplier.

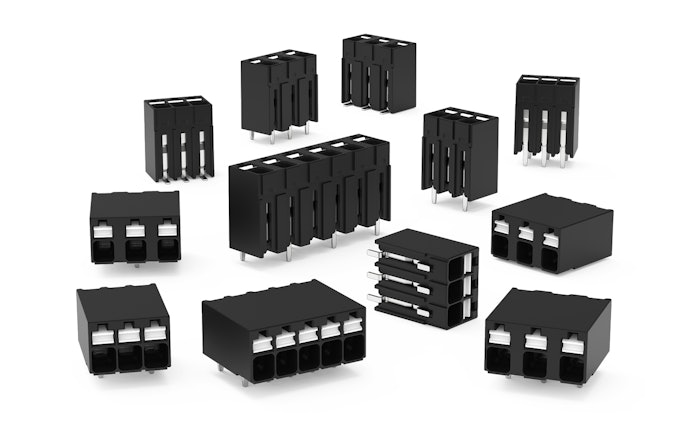

2086 Hi Res

With its incredible versatility and compact size, WAGO’s new 2086 Series PCB Terminal Blocks are ideal for panel feedthrough and tight spaces.  These terminal blocks feature our Push-In CAGE CLAMP® spring pressure connection technology for direct insertion of both solid and ferruled conductors, with the added convenience of push button operation for the introduction of flexible wires.

The incredibly broad range of this terminal block series features over 256 variants.  Choose between pin spacing (3.5 or 5mm), side or top wire entry angle, double in-line or staggered pinning for higher voltages with nominal current, as well as through-hole or surface mount. They are available in 2-12 poles, accepting wire sizes between 24-14 AWG.

From device controllers to compact device connection of any type, the 2086 Series PCB Terminal Blocks are suitable for reflow soldering and are packaged in either tray (THR) or tape and reel (SMD) allowing for full integration into the SMT assembly process.

For more information go to www.wago.com/us/2086-series
